COSMOX / Haute42 HautePad R16
A 16-input acrylic leverless controller with a compact R-series layout, Haute Crystal low-profile hot-swappable switches, per-button RGB, an OLED display, GP2040-CE firmware, USB-C wired connectivity, web configuration, and an EXT port for platform-authentication adapters.
- Price
- $78.19 sale / $91.99 list
- Footprint
- 296 × 196 × 10 mm
- Weight
- 780 g
- Buttons
- 16
Technical data
Specs
Physical
- Dimensions
- 296 × 196 × 10 mm
- Weight
- 780 g
- Size category
- Standard
- Colors
- Black, White
- Materials
- Acrylic, PCB
Connectivity & platforms
- Native platforms
- PC, PlayStation 4, PlayStation 3, Nintendo Switch, Legacy consoles
- Conditional platforms
- PlayStation 5 — Requires PS Passthrough authentication through the EXT port, such as Booter5. — Compatibility is limited to supported PS5 fighting games.
- Default board
- GP2040-CE
- Observed price
- $78.19 sale / $91.99 listONEED is listed by Haute42 as an authorized United States storefront. Price and stock can change.
Configuration
- Brand
- COSMOX / Haute42
- Controller type
- leverless
- Layout
- 16-input R-series leverless layout with four directions, eight primary action buttons, and M1, M2, L3, and R3 extra inputs
- Buttons
- 16
Maintenance and customization
Mod Support
Lever SwapNot supported
Button SwapSupported
Artwork SwapSupported
Plexi PanelNot listed
Hot-swappable low-profile switches and an official R16 artwork-template archive support switch and artwork changes. No manufacturer replacement plexi product was found.
Official media

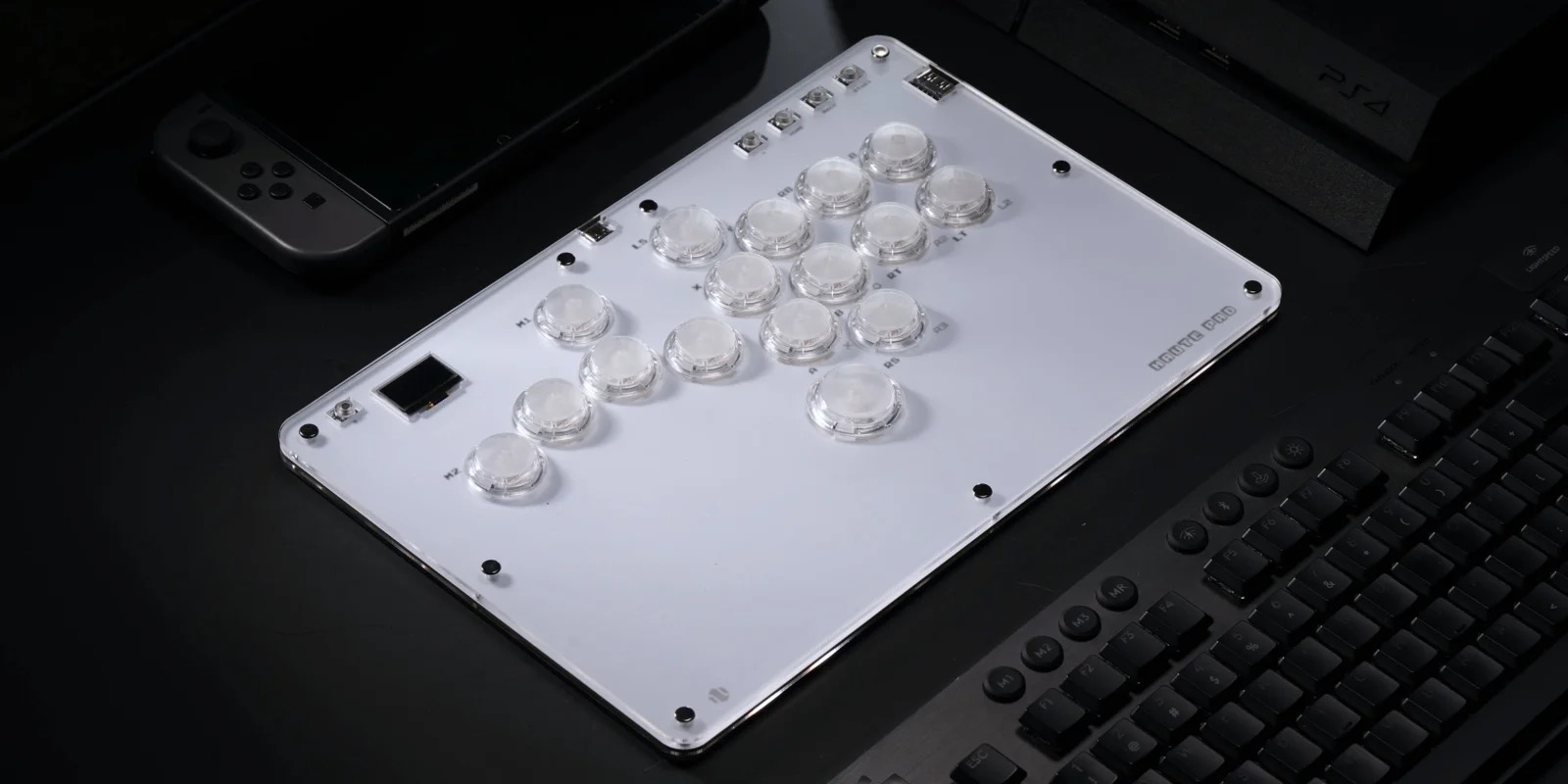

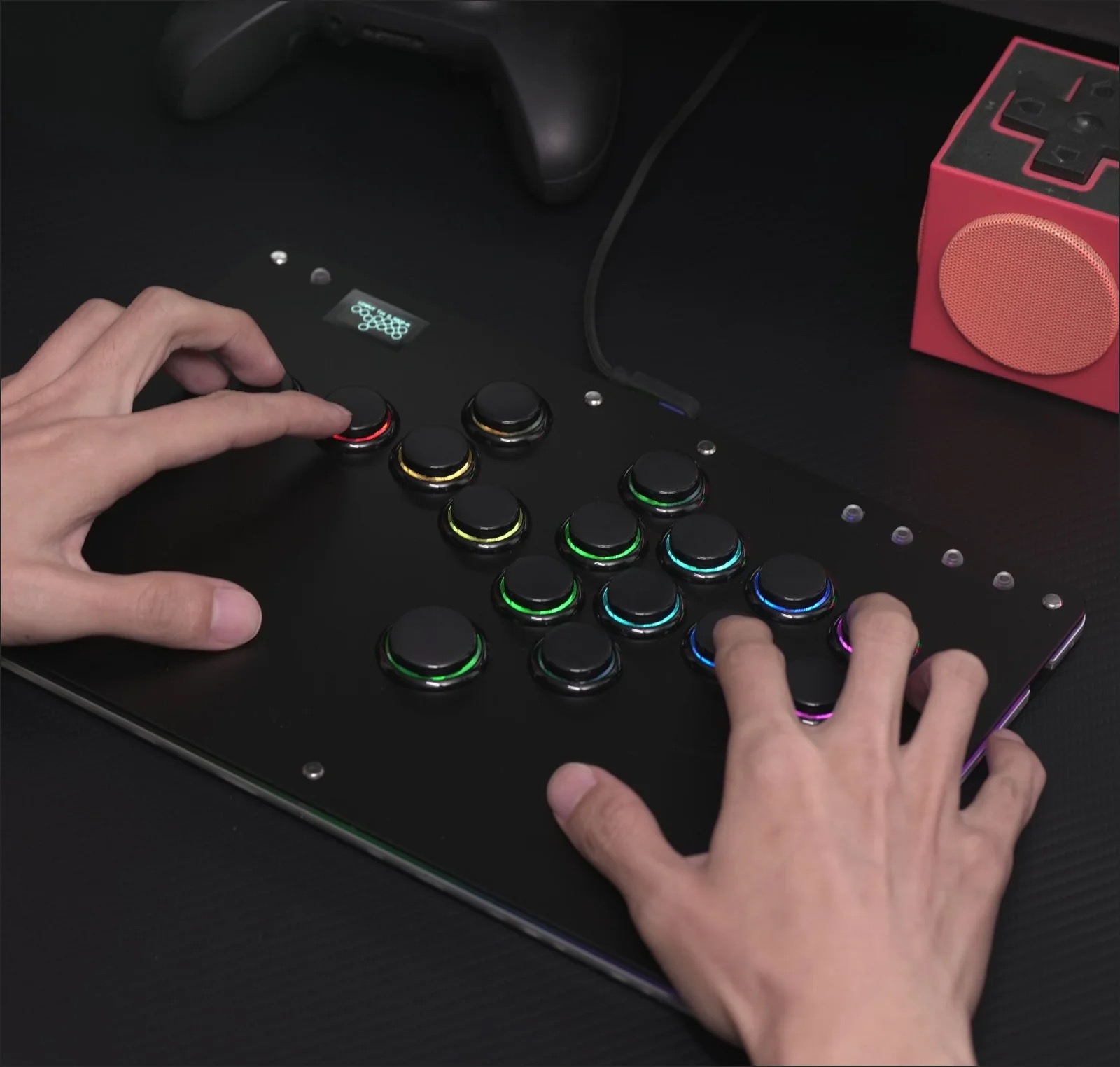

Official Product Images
Product images in this section come from official product pages, store listings, manuals, or manufacturer-provided media.
Mod references
Community Mod Gallery
Community photos are for modding reference: custom skins, button colors, lever swaps, dust washers, cable routing, panel changes, and other real-world builds. Entries link back to the original creator/source.
No community mod references linked yet
Future entries can include custom artwork, alternate buttons, lever swaps, dust washers, cable mods, panel replacements, and other real builds for this exact controller.
Browse completed custom sticksAvailability references
Retail Links
Links are kept so readers can verify availability, regional listings, and price source context. They are intentionally not presented as calls to buy.
Verification
Sources
Source records explain where each claim came from and when this entry was last revised.
official
COSMOX Gaming product index
COSMOX Technology lists HautePad and HauteBoard product families; Haute42 home page links to COSMOX and identifies Cosmox Technology ownership.
official
official
GP2040-CE Haute42/COSMOX BoardConfig on GitHub
Confirms all Haute42/COSMOX HautePad products run GP2040-CE firmware on RP2040. Separate config for M Lite at Haute42COSMOXMLite.
official
COSMOX support — HautePad R16 firmware, manual, and art templates
Lists GP2040-CE 0.7.11 firmware for the HautePad R16 and links its official manual and artwork-template archive.
official
official
official
COSMOX Booter5 setup page
Explains configuring PS5/PS4 Host USB, inserting Booter5 into the EXT port, and connecting the HautePad to a PS5 or PS4.
official
Haute42 authorized storefront directory
Lists ONEED and SIXSIR among authorized United States Amazon storefronts.
store
ONEED Haute42 R16 authorized Amazon US listing
Listed the black R16 in stock at $78.19 against a $91.99 list price with black and white choices, hot-swappable crystal switches, a USB-C cable, and anti-slip pads.
official
GP2040-CE hotkeys — SOCD cleaning modes
Documents Up Priority, Neutral, Last Win, First Win, and SOCD Cleaning Off; Off is available only in XInput mode.
