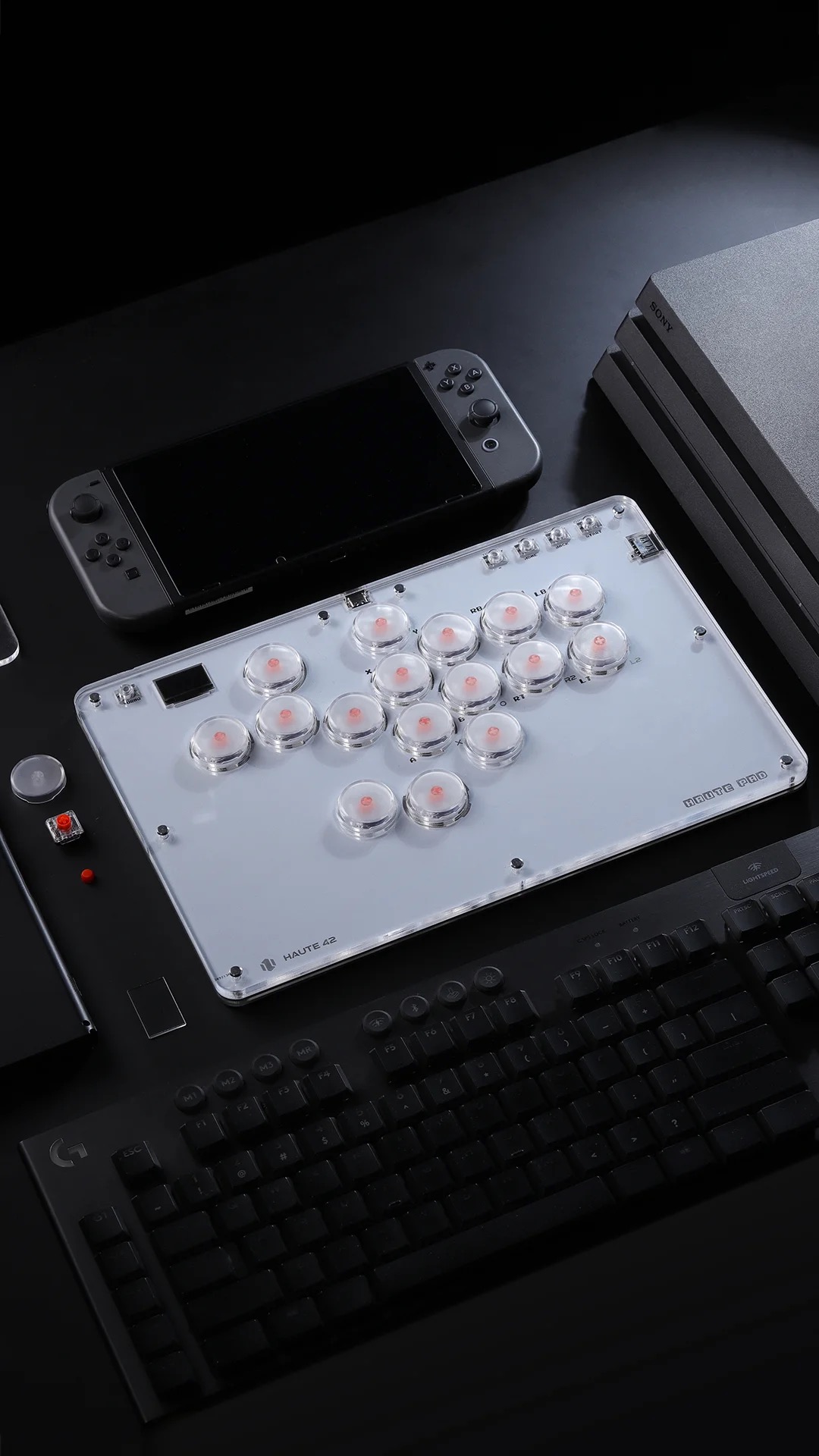

COSMOX / Haute42 HautePad T16
Wide acrylic leverless controller with sixteen 30mm inputs, hot-swappable Kailh low-profile switches, GP2040-CE firmware, a status display, custom RGB, web configuration, an EXT authentication port, and two customizable extra keys.
- Price
- $89.99
- Footprint
- 296 × 196 × 12.5 mm
- Weight
- 940 g
- Buttons
- 16
Technical data
Specs
Physical
- Dimensions
- 296 × 196 × 12.5 mm
- Weight
- 940 g
- Size category
- Standard
- Colors
- Black, Clear
- Materials
- Acrylic, PCB
Connectivity & platforms
- Native platforms
- PC, PlayStation 4, PlayStation 3, Nintendo Switch, Legacy consoles
- Conditional platforms
- PlayStation 5 — Requires a compatible authentication adapter through the EXT port. — Compatibility is limited to supported PS5 fighting games.
- Default board
- GP2040-CE
- Observed price
- $89.99Standard retail price via authorized Amazon/AliExpress storefronts.
Configuration
- Brand
- COSMOX / Haute42
- Controller type
- leverless
- Layout
- 16-button leverless layout with five movement inputs and eleven action inputs
- Buttons
- 16
Maintenance and customization
Mod Support
Lever SwapNot supported
Button SwapSupported
Artwork SwapSupported
Plexi PanelNot listed
Hot-swappable switches and removable clear top acrylic support switch, keycap, and artwork changes; no separate replacement plexi product was verified.
Official media
Official Product Images
Product images in this section come from official product pages, store listings, manuals, or manufacturer-provided media.
Mod references
Community Mod Gallery
Community photos are for modding reference: custom skins, button colors, lever swaps, dust washers, cable routing, panel changes, and other real-world builds. Entries link back to the original creator/source.
No community mod references linked yet
Future entries can include custom artwork, alternate buttons, lever swaps, dust washers, cable mods, panel replacements, and other real builds for this exact controller.
Browse completed custom sticksAvailability references
Retail Links
Links are kept so readers can verify availability, regional listings, and price source context. They are intentionally not presented as calls to buy.
Verification
Sources
Source records explain where each claim came from and when this entry was last revised.
official
official
GP2040-CE Haute42/COSMOX BoardConfig on GitHub
Confirms all Haute42/COSMOX HautePad products run GP2040-CE firmware on RP2040. Separate config for M Lite at Haute42COSMOXMLite.
official
Haute42 Haute Pad T series product page
Official base T16 specifications: GP2040-CE, Kailh low-profile red hot-swappable switches, 296 x 196 x 12.5mm dimensions, 940g weight, RGB, EXT port, web configuration, SOCD cleaning, turbo, and included accessories.
review
TouchArcade Haute42 T16 review
Confirms sixteen 30mm inputs, the five-movement/eleven-action layout, removable acrylic artwork layer, USB-C and EXT ports, switch replacement, lack of tournament lock, and adapter requirements for PS5/Xbox.
review
The Arcade Stick Haute42 T16 review
Provides the November 2023 release timing, Choc V2 Red switch identification, secondary controls, SOCD modes, and distinction from later T16 revisions.
